MODEL GDW-01

HEDLEY HIGHVOLT

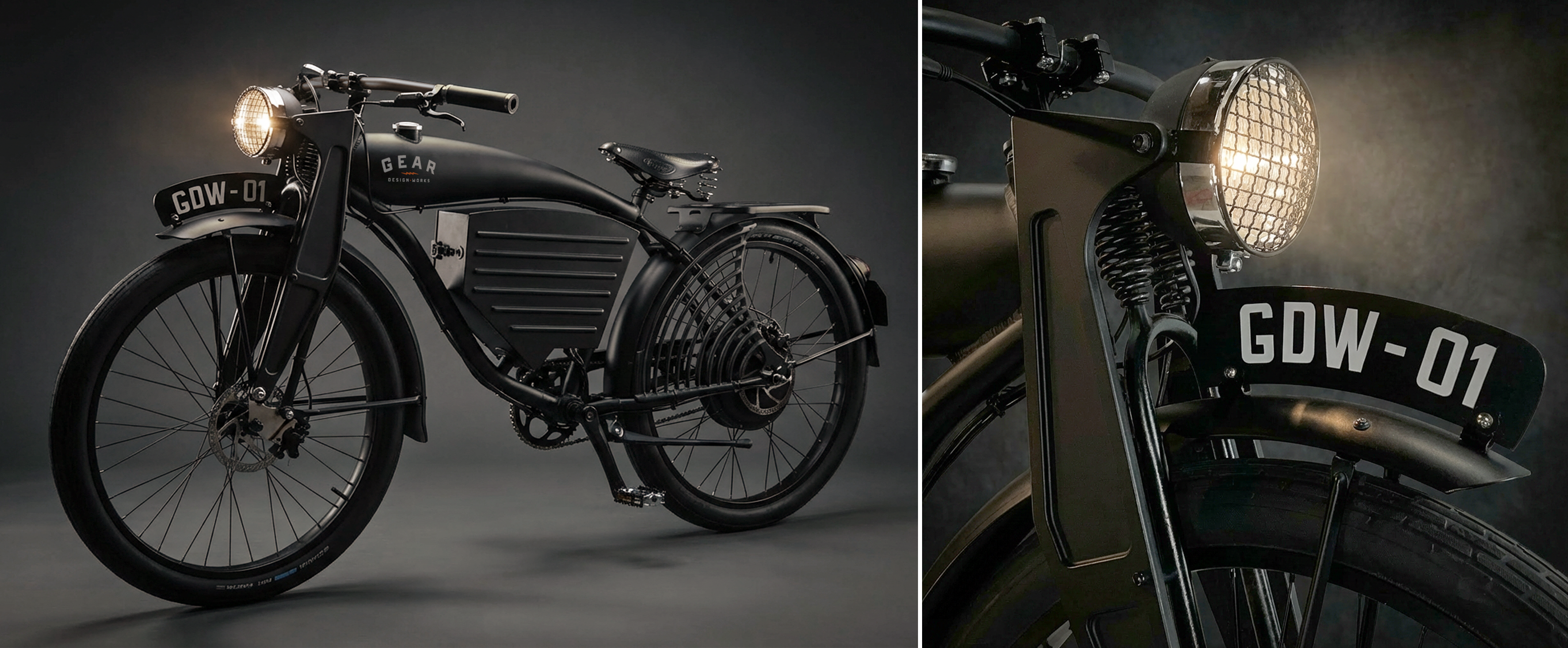

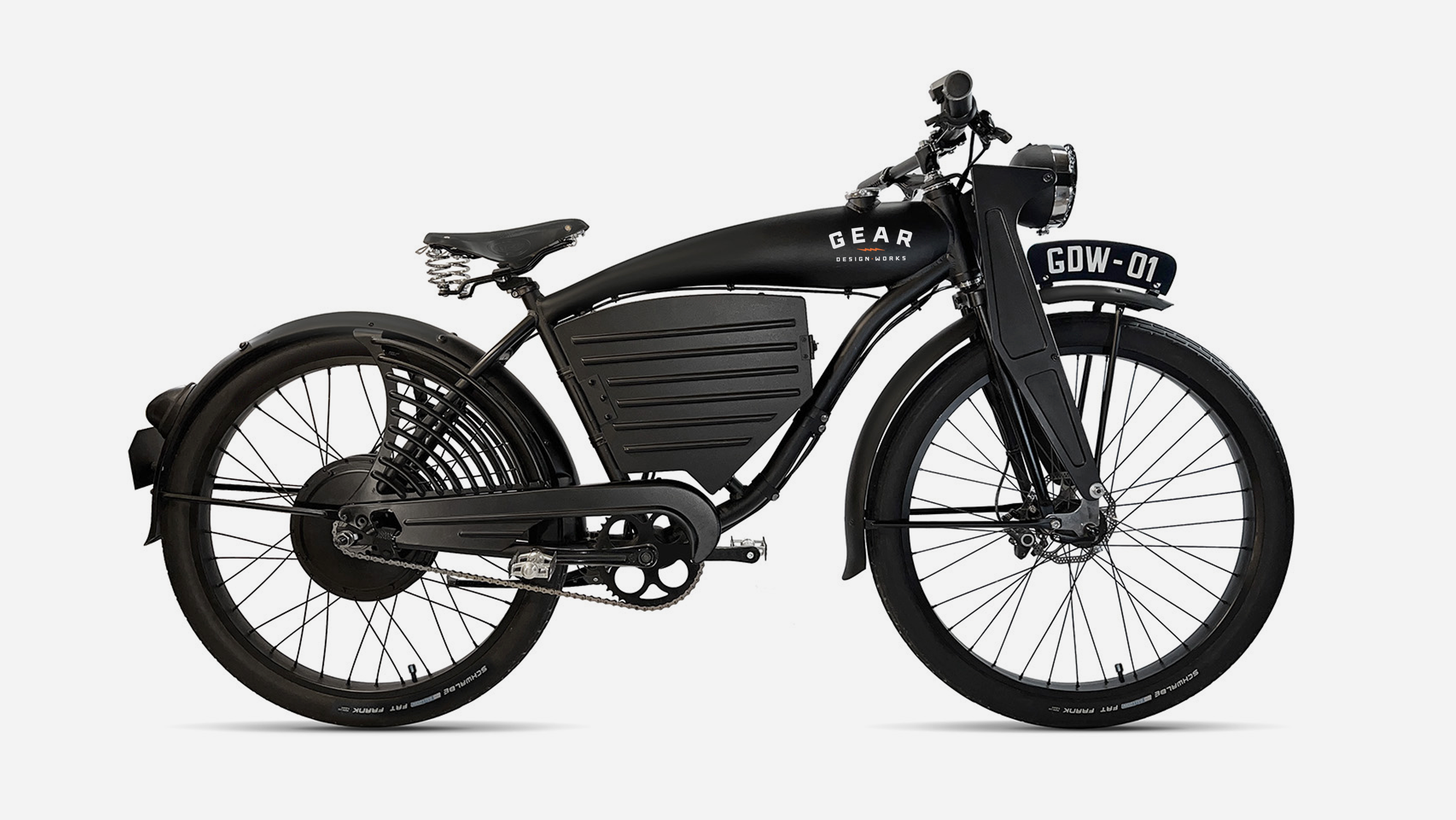

The one that started it all. Inspired by British motorcycles of the 1930s, this was my first electric bike build, from 2013. It combines new materials, custom designs, found objects, and vintage parts into a single, original machine.

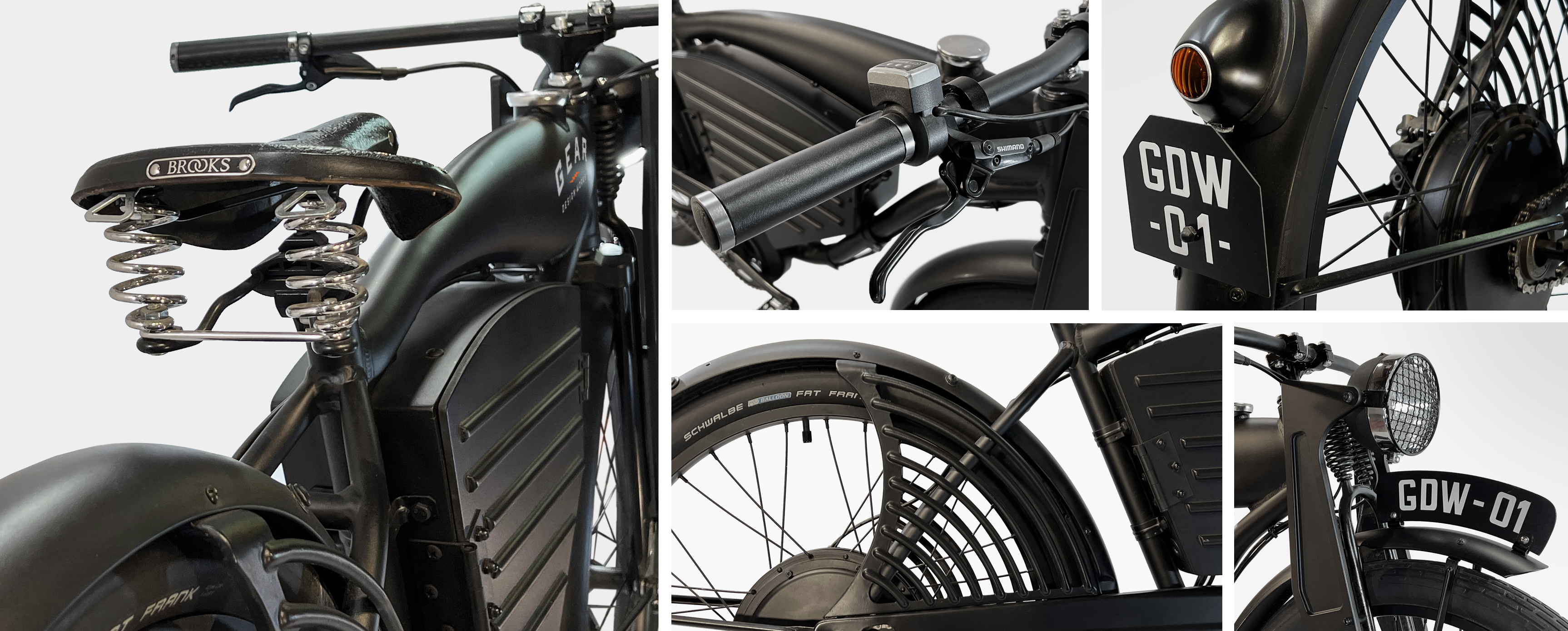

The base frame comes from a gas-powered bicycle, onto which I added a hand-crafted wooden battery and control box. Custom aluminum fork spats were designed to hold the headlight, while front and rear fender plates complete the look. The skirt and chain guard are salvaged from a 1930s Elgin girl’s bike, and the rear light comes from a BMW-style Ural motorcycle sidecar.

Every detail of this bike tells a story: Bridging past and present in a modern tribute to classic British design.

Price:

N/A

Specifications

FRAME / WEIGHT

Size: One size (Fits 5'3" - 6' 5")

Frame: Aluminum alloy

Total Weight: 88 lbs

Suspension: Inverted Oil-dampened front fork- 90mm Travel

Color: Matte Black

DRIVE TRAIN

Pedal Assist: 5 Modes

Throttle: Included

Motor: Bafang 1000w Rear Hub

Crankset: 170mm ProWheel 39T Single Speed

Shift Lever: Shimano Tourney SL-TX30 (7-Speed)

Derailleur (Rear) Shimano 7-Speed Altus

Freewheel: 7-Speed Shimano 14-34T

COMPONENTS

Brake Levers: Magura MT5e hydraulic brakes with 4-Piston Calipers & motor cut-off

Brake Discs: 203mm front / 185mm rear

Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep

Grips: 7/8" (22mm) Black leather

Stem: 7/8" (22mm) Moto direct-nount double-clamp

Headset: 1-1/8" (44mm) ZTTO Headset kit with semi-integrated bearings, Aluminium Alloy

Saddle: Black leather retro-style spring saddle

Pedals: MKS Sylvan Stream

Headlight: 7" XXX Lumens LED

Taillights: 2 USB rechargable lights/ 3 modes / 26 hour runtime / Rear drop out mounted

WHEELS

Front Hub: Quick release

Rear Hub: 135mm 1000W Bafang Hub Motor

Rims: 26 x 4

Tubs: 26 x 4 with thorn resistant stips installed

Spokes: Stainless steel

Tires: 26 x 4 Kenda

BATTERY / FEATURES

Battery: 48v 20ah Lithium

Motor: Bafang 1000w Rear Hub

Torque: 70-80 Nm

Display: Digitech BC352

Maximum Speed: 30 Mph / 50Km/h

Charging Time: 5-6 Hours

CLASSIFICATION

HEDLEY HIGHVOLT

N/A

Specifications

Size: One size (Fits 5'3" - 6' 5")

Frame: Aluminum alloy

Total Weight: 88 lbs

Suspension: Inverted Oil-dampened front fork- 90mm Travel

Color: Matte Black

Pedal Assist: 5 Modes

Throttle: Included

Motor: Bafang 1000w Rear Hub

Crankset: 170mm ProWheel 39T Single Speed

Shift Lever: Shimano Tourney SL-TX30 (7-Speed)

Derailleur (Rear) Shimano 7-Speed Altus

Freewheel: 7-Speed Shimano 14-34T

Brake Levers: Magura MT5e hydraulic brakes with 4-Piston Calipers & motor cut-off

Brake Discs: 203mm front / 185mm rear

Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep

Grips: 7/8" (22mm) Black leather

Stem: 7/8" (22mm) Moto direct-nount double-clamp

Headset: 1-1/8" (44mm) ZTTO Headset kit with semi-integrated bearings, Aluminium Alloy

Saddle: Black leather retro-style spring saddle

Pedals: MKS Sylvan Stream

Headlight: 7" XXX Lumens LED

Taillights: 2 USB rechargable lights/ 3 modes / 26 hour runtime / Rear drop out mounted

Front Hub: Quick release

Rear Hub: 135mm 1000W Bafang Hub Motor

Rims: 26 x 4

Tubs: 26 x 4 with thorn resistant stips installed

Spokes: Stainless steel

Tires: 26 x 4 Kenda

Battery: 48v 20ah Lithium

Motor: Bafang 1000w Rear Hub

Torque: 70-80 Nm

Display: Digitech BC352

Maximum Speed: 30 Mph / 50Km/h

Charging Time: 5-6 Hours

CA E-bike Classification: Class 2
