MODEL GDW-03
BLACKSPIRE

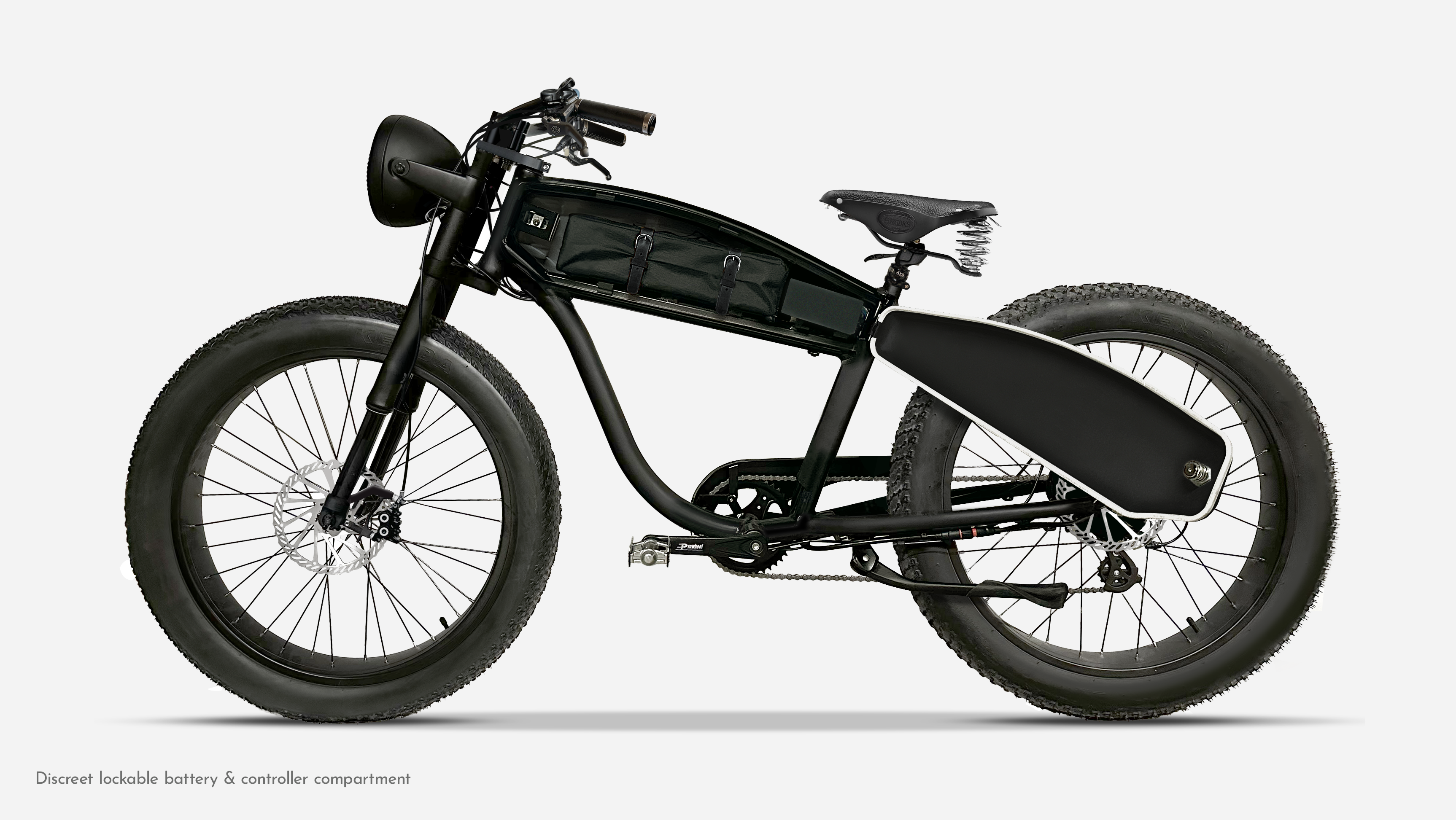

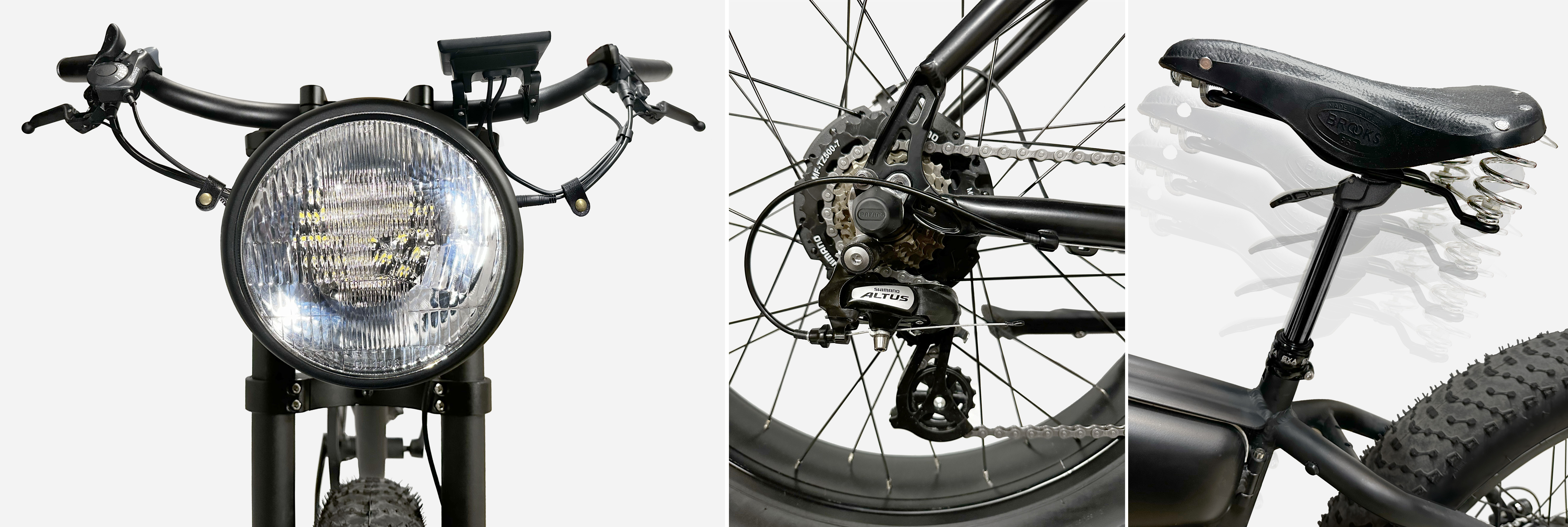

Moving away from building these bikes on old frames from the ground up, the Blackspire is built up from an existing e-bike base with the battery and controller housed in the top tube compartment, giving it even more of the classic motorcycle look. That, the wheelset and some components are about all that was stock. I added oversized inverted triple-tree forks, Magura brakeset, adjustable seatpost, Brooks saddle, thumbtrottle, and 7" motorcycle headset.
Originally created as a potential production prototype, this ended up being a one-off after finding out that the manufacturer has an existing distribution deal. Nonetheless, a fast, clean and stripped-down street demon that is an absolute blast to ride.
Price:
TBD
CONTACT ME!Specifications
FRAME / WEIGHT
Size: One size (Fits 5'3" - 6' 5")
Frame: Aluminum alloy
Total Weight: 88 lbs
Suspension: Inverted Oil-dampened front fork- 90mm Travel
Color: Matte Black
DRIVE TRAIN
Pedal Assist: 5 Modes
Throttle: Included
Motor: Bafang 1000w Rear Hub
Crankset: 170mm ProWheel 39T Single Speed
Shift Lever: Shimano Tourney SL-TX30 (7-Speed)
Derailleur (Rear) Shimano 7-Speed Altus
Freewheel: 7-Speed Shimano 14-34T
COMPONENTS
Brake Levers: Magura MT5e hydraulic brakes with 4-Piston Calipers & motor cut-off
Brake Discs: 203mm front / 185mm rear
Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep
Grips: 7/8" (22mm) Black leather
Stem: 7/8" (22mm) Moto direct-nount double-clamp
Headset: 1-1/8" (44mm) ZTTO Headset kit with semi-integrated bearings, Aluminium Alloy
Saddle: Black leather retro-style spring saddle
Pedals: MKS Sylvan Stream
Headlight: 7" XXX Lumens LED
Taillights: 2 USB rechargable lights/ 3 modes / 26 hour runtime / Rear drop out mounted
WHEELS
Front Hub: Quick release
Rear Hub: 135mm 1000W Bafang Hub Motor
Rims: 26 x 4
Tubs: 26 x 4 with thorn resistant stips installed
Spokes: Stainless steel
Tires: 26 x 4 Kenda
BATTERY / FEATURES
Battery: 48v 20ah Lithium
Motor: Bafang 1000w Rear Hub
Torque: 70-80 Nm
Display: Digitech BC352
Maximum Speed: 30 Mph / 50Km/h
Charging Time: 5-6 Hours
CLASSIFICATION
