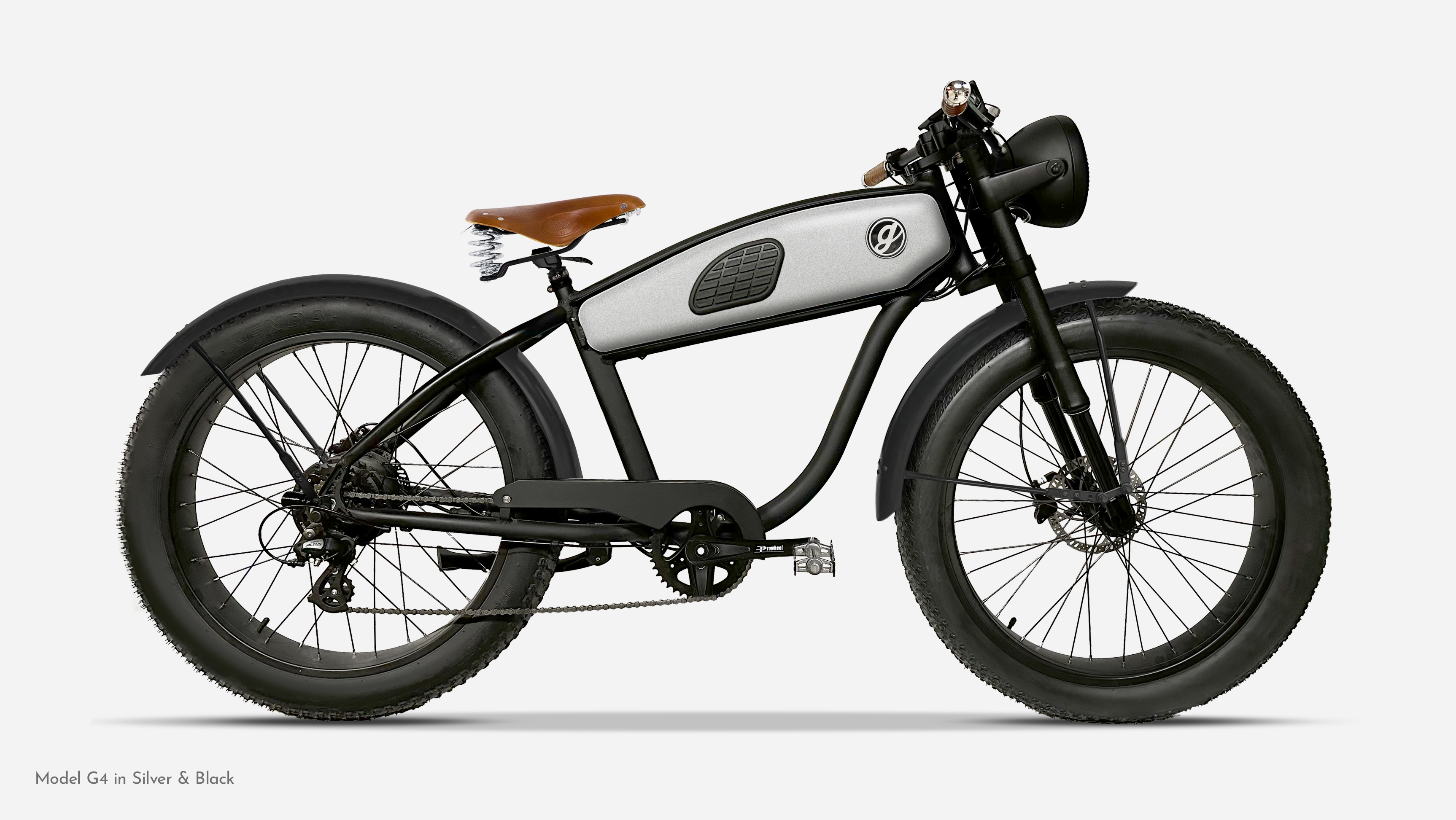

MODEL GDW-04
PATROLLER
A nod to the classic highway patrol Harleys prowling the highways of the 1940s. Based on the same foundation as the GDW-03 model, but with a full set of fat-tire fenders, and brown leather accents.
Price:
TBD
CONTACT ME!Specifications
FRAME / WEIGHT
Size: One size (Fits 5'3" - 6' 5")
Frame: Aluminum alloy
Total Weight: 88 lbs
Suspension: Inverted Oil-dampened front fork- 90mm Travel
Available Colors: Matte Black or Matte Black with Silver
DRIVE TRAIN
Pedal Assist: 5 Modes
Throttle: Included
Motor: Bafang 1000w Rear Hub
Crankset: 170mm ProWheel 39T Single Speed
Shift Lever: Shimano Tourney SL-TX30 (7-Speed)
Derailleur (Rear) Shimano 7-Speed Altus
Freewheel: 7-Speed Shimano 14-34T
COMPONENTS

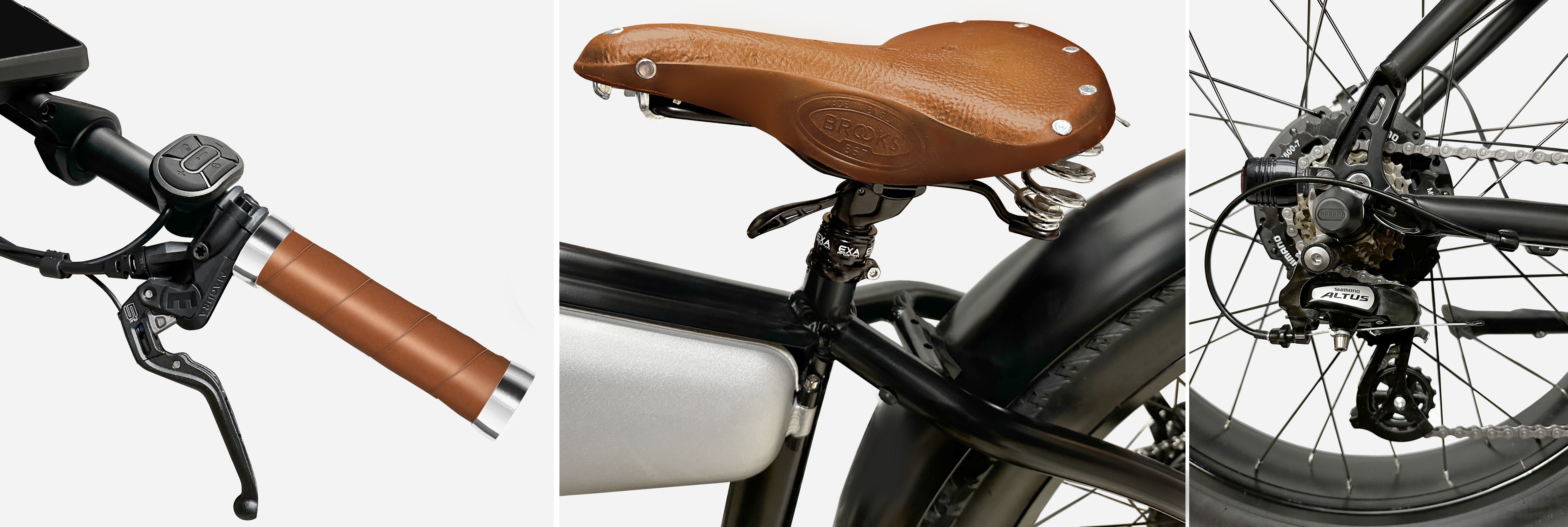

Brake Levers: Zoom H876E E-bike hydraulic brakes with 4-Piston Calipers & motor cut-off
Brake Discs: 203mm front / 185mm rear
Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep
Grips: 7/8" (22mm) Brown PU perforated leather
Stem: 7/8" (22mm) Moto direct-nount double-clamp
Headset: 1-1/8" (44mm) ZTTO Headset kit with semi-integrated bearings, Aluminium Alloy
Saddle: Brown leather retro-style spring saddle
Pedals: MKS Sylvan Stream
Headlight: 7" XXX Lumens LED
Taillights: 2 USB rechargable lights/ 3 modes / 26 hour runtime / Rear drop out mounted
WHEELS
Front Hub: Quick release
Rear Hub: 135mm 1000W Bafang Hub Motor
Rims: 26 x 4
Tubs: 26 x 4 with thorn resistant stips installed
Spokes: Stainless steel
Tires: 26 x 4 Kenda
BATTERY / FEATURES
Battery: 48v 20ah Lithium
Motor: Bafang 1000w Rear Hub
Torque: 70-80 Nm
Display: Digitech BC352
Maximum Speed: 30 Mph / 50Km/h
Charging Time: 5-6 Hours
CLASSIFICATION
