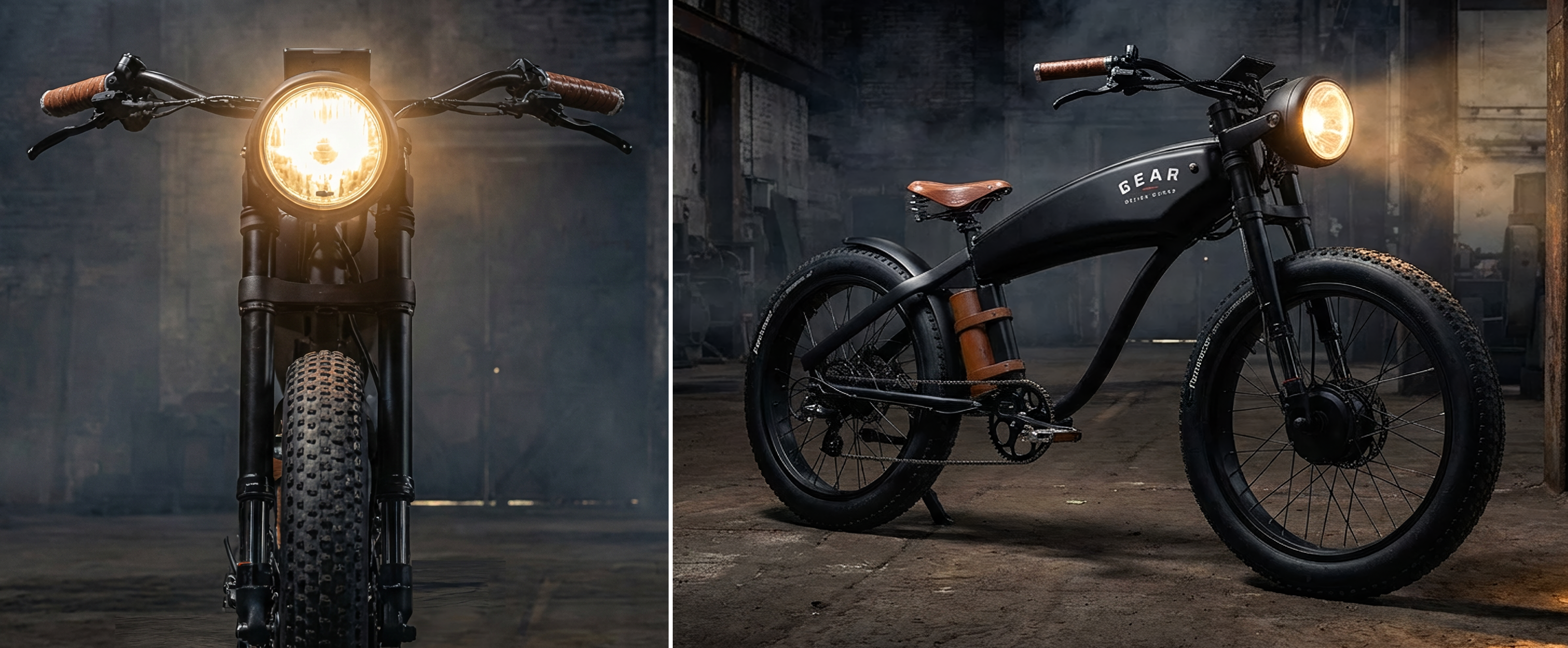

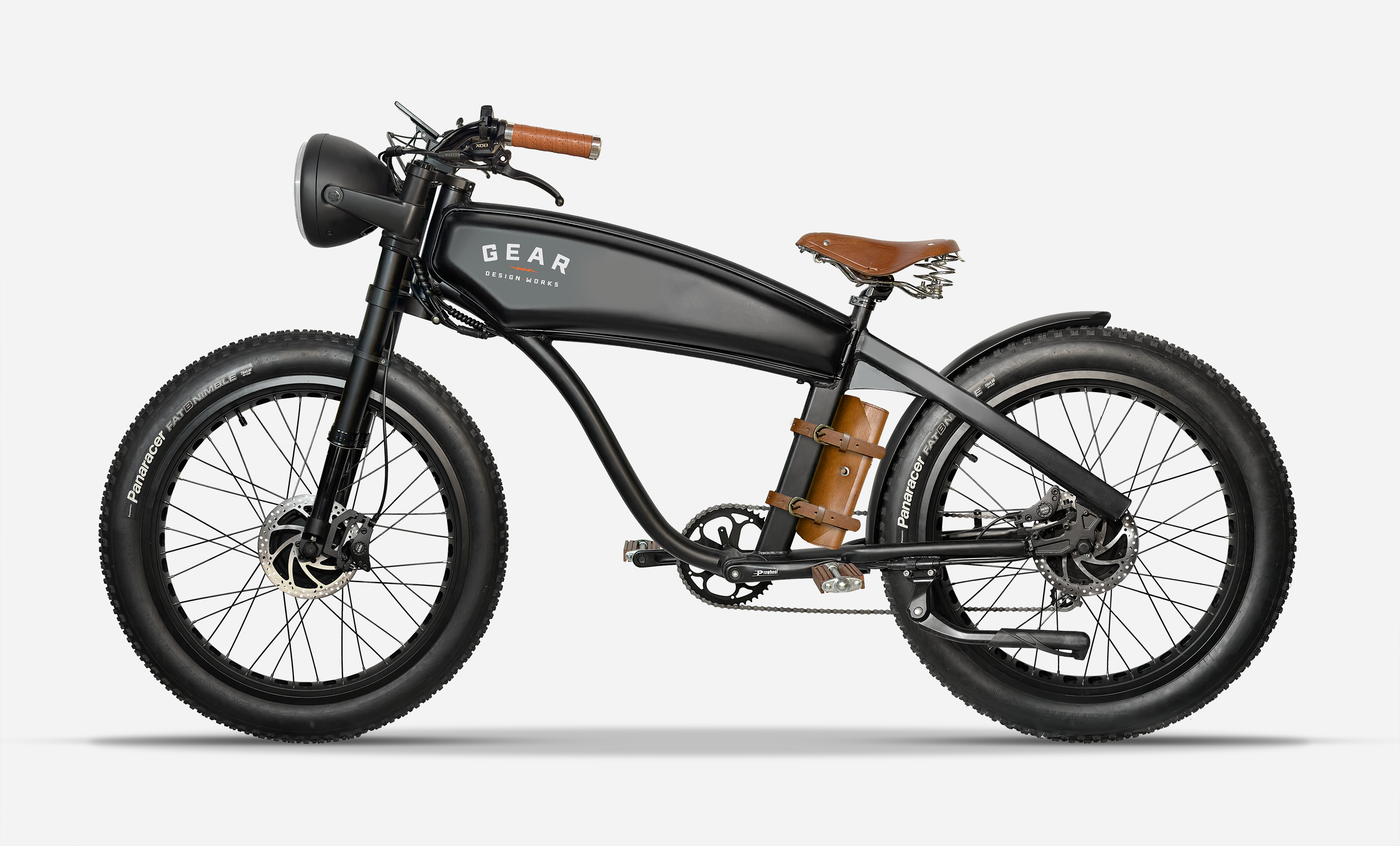

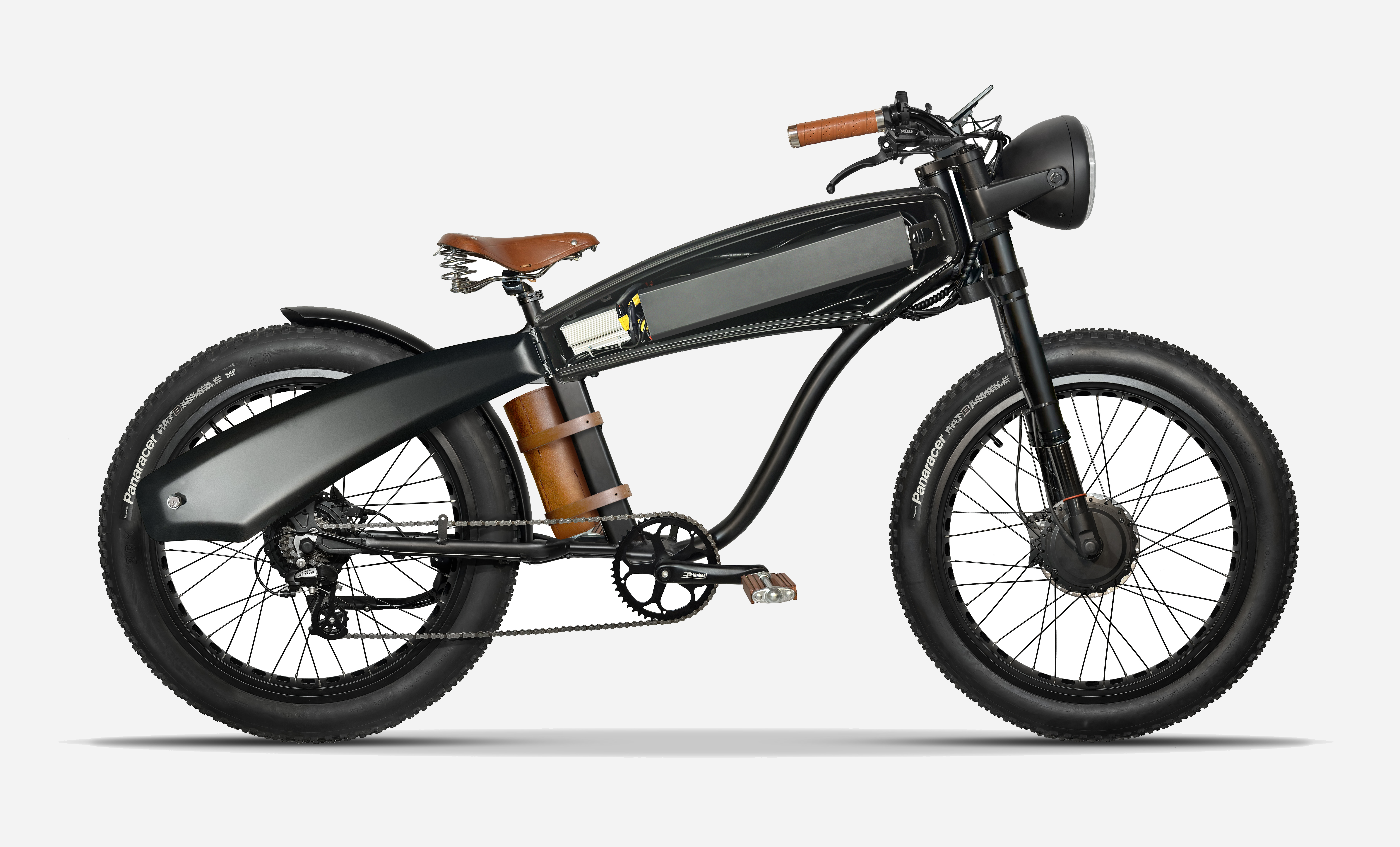

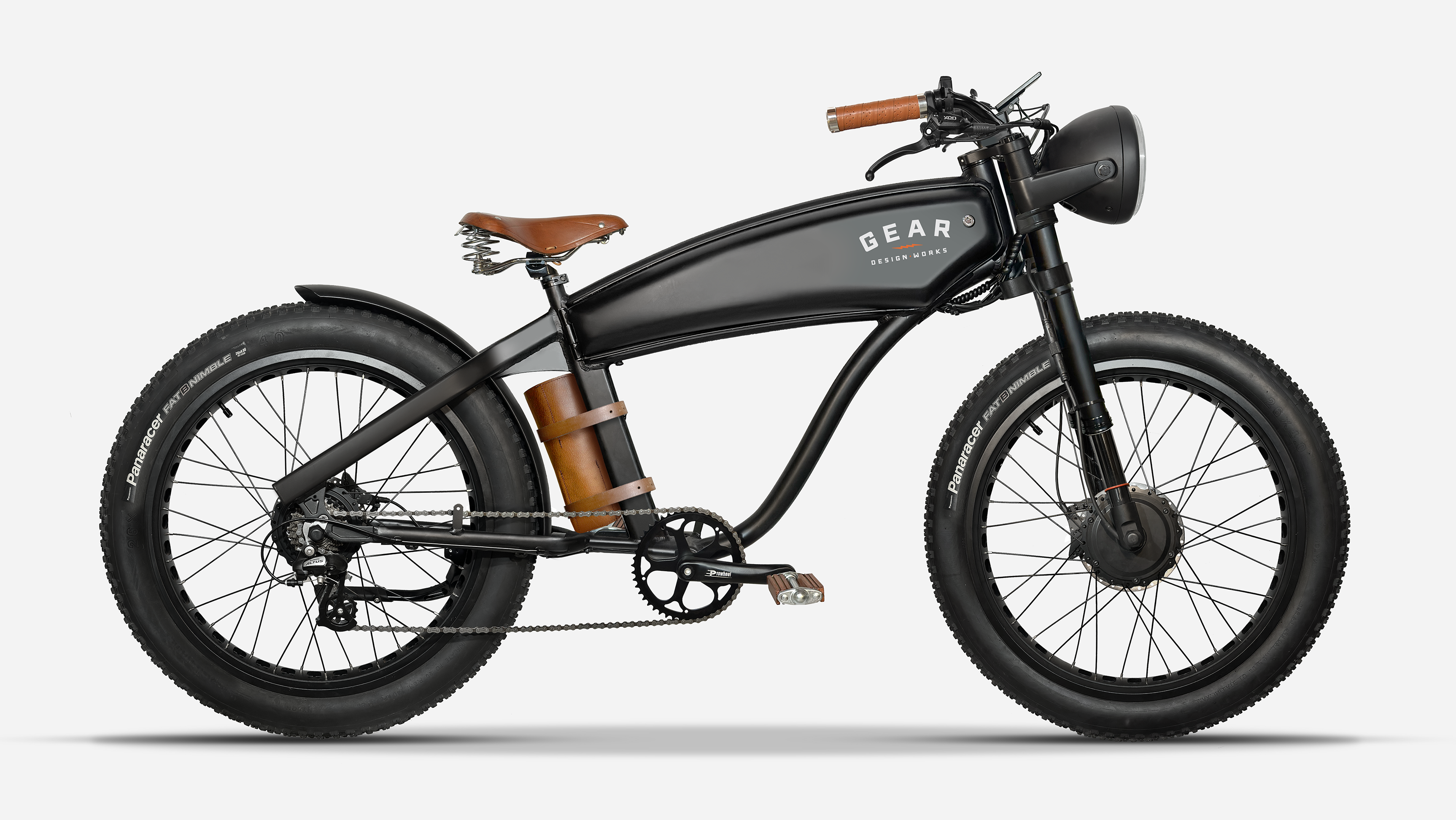

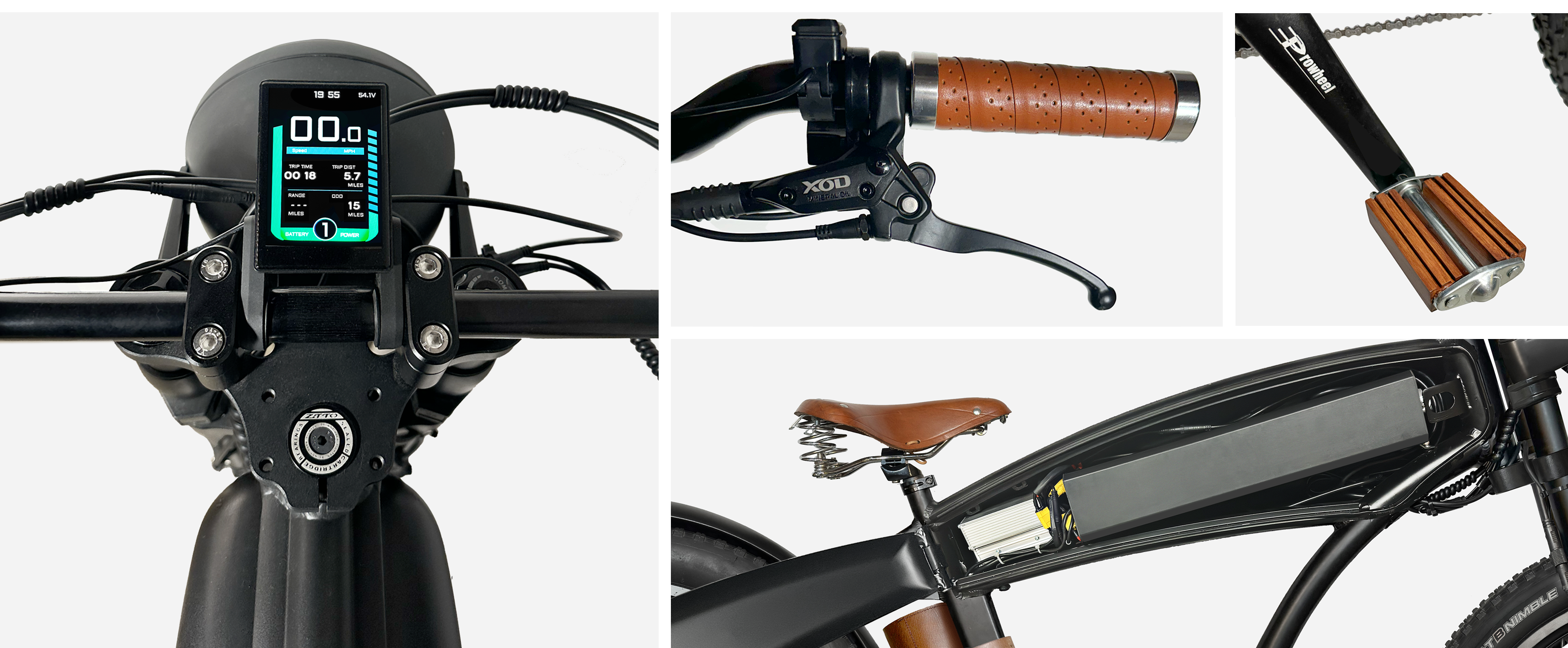

MODEL GDW-05
BARRACUDA
Why Barracuda? Because it's long, fast and mean! After working up the 3 & 4 models, I found out that frame wouldn't be available for wider US distribution. So, for this hobby to have a chance of becoming a business I had to find an equally cool bike to build a custom kit around. I think I found it! Oversized battery compartment, internal routing, and Monocoque reinforced seat stays. The dual 48v hubs, a stretched wheelbase, and major torque makes this one a bit harder to handle, but a blast to ride. Not for the smaller rider or those new to e-bikes.
Price:
TBD
CONTACT ME!Specifications
FRAME / WEIGHT
Size: One size (Fits 5'3" - 6' 5")
Frame: Aluminum alloy
Total Weight: 88 lbs
Suspension: Inverted Oil-dampened front fork- 90mm Travel
Color: Matte Black
DRIVE TRAIN
Pedal Assist: 5 Modes
Throttle: Included
Motor: Bafang 1000w Rear Hub
Crankset: 170mm ProWheel 39T Single Speed
Shift Lever: Shimano Tourney SL-TX30 (7-Speed)
Derailleur (Rear) Shimano 7-Speed Altus
Freewheel: 7-Speed Shimano 14-34T
COMPONENTS
Brake Levers: Magura MT5e hydraulic brakes with 4-Piston Calipers & motor cut-off
Brake Discs: 203mm front / 185mm rear
Handlebars: 7/8" (22mm) flat 800mm drag bar / 12 degree backsweep
Grips: 7/8" (22mm) Black leather
Stem: 7/8" (22mm) Moto direct-nount double-clamp
Headset: 1-1/8" (44mm) ZTTO Headset kit with semi-integrated bearings, Aluminium Alloy
Saddle: Black leather retro-style spring saddle
Pedals: MKS Sylvan Stream
Headlight: 7" XXX Lumens LED
Taillights: 2 USB rechargable lights/ 3 modes / 26 hour runtime / Rear drop out mounted
WHEELS
Front Hub: Quick release
Rear Hub: 135mm 1000W Bafang Hub Motor
Rims: 26 x 4
Tubs: 26 x 4 with thorn resistant stips installed
Spokes: Stainless steel
Tires: 26 x 4 Kenda
BATTERY / FEATURES
Battery: 48v 20ah Lithium
Motor: Bafang 1000w Rear Hub
Torque: 70-80 Nm
Display: Digitech BC352
Maximum Speed: 30 Mph / 50Km/h
Charging Time: 5-6 Hours
